A-plane±0.2o Patterned Sapphire Substrates BOW ≤-8~0μm Edge Round
The formation of LEDs on patterned sapphire substrates is the most cost-effective method for manufacturing such devices. These LEDs exhibit high-normalized electroluminescence intensity and high light extraction efficiency.
In addition, patterned wafers reduce defect density and total internal reflection losses. These advantages are driving the adoption of nitride-semiconductor-based LEDs by manufacturers.

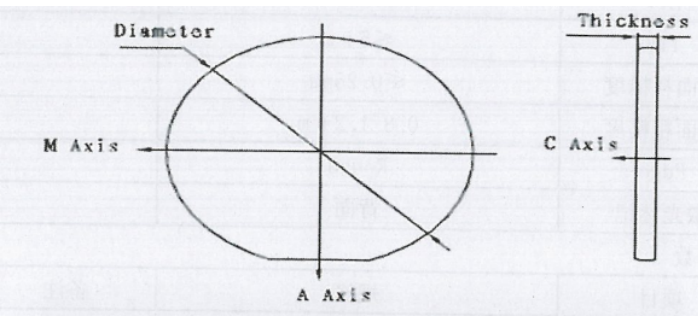

| 2inch Patterned sapphire substrate |
| Item | Al2O3 |
|
| Dimension | 50.80±0.10mm |
| Thickness | 430±10μm |
| Flat edge width | 16±1.0mm |
| Flat edge angle | A-plane±0.2o |
| TTV | ≤5μm |
| BOW | ≤-8~0μm |
| Front Surface Roughness | ≤0.25nm |
| Back Surface Roughness | 0.8~1.2μm |
| Edge | Round |
| Laser making | back |
About Us
We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.
FAQ
Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
